Snap band

Snap band
Snap band
Product Code : ZGTEK-snap band
Brand Name : ZGTEK
Product Description

A basic Filter cage welding line consists of:

  • 16 or 24-vertical wires cage body welding machine DLN-24/DLN-16,
  • Wire straightening machine TZ2.8-5
  • Ring making machine R-6-300/ RM-6-310
  • MS ring butt welding machine UR-40
  • SS ring Argon Arc (TIG) welder ARW
  • Top collar welder DS-80/D4S-80-2

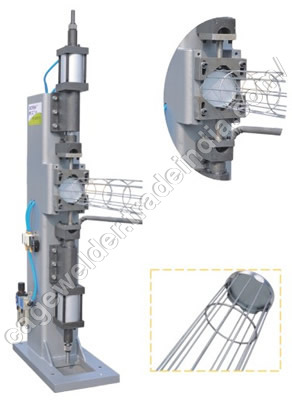

  • Bottom cap welder DX-80
  • Venturi tube welder DW-80.

Salient Features:

  • Weld galvanized(GI) wire directly without damaging zinc plating
  • Bad weld detection, auto re-weld
  • Linear bearing carriage rail
  • CNC control
  • Ring space is programmable and cage is pulled by step motor automatically
  • Ring space precision is 0.1mm, pulling speed is 0.4m/s
  • Auto ring forming and welding integrated machine R-6-300

ZGTEK cage welding machine can make:

Types of cage: Round cage, Oval (flat) cage, Star cage, Spider cage, Conical cage, Split cage, etc.

  • Cage size: dia.100-200mm
  • Steel wire of Cage: Mild steel wire, Stainless steel wire, Galvanized carbon steel wire, etc.
  • Steel wire thickness: 2.5-5mm

Requirements of one cage welding line

  • Workshop: 10m*20m
  • Power capacity: 45-50KVA
  • Workers: 5 people for a running line.

Output

  • For example: Filter cage: 24 vertical wires * 6000mm Length, Ring distance: 50-200mm.
  • Daily output: 250pcs (10hours/day)
  • Annual output: 70000pcs (280days).
