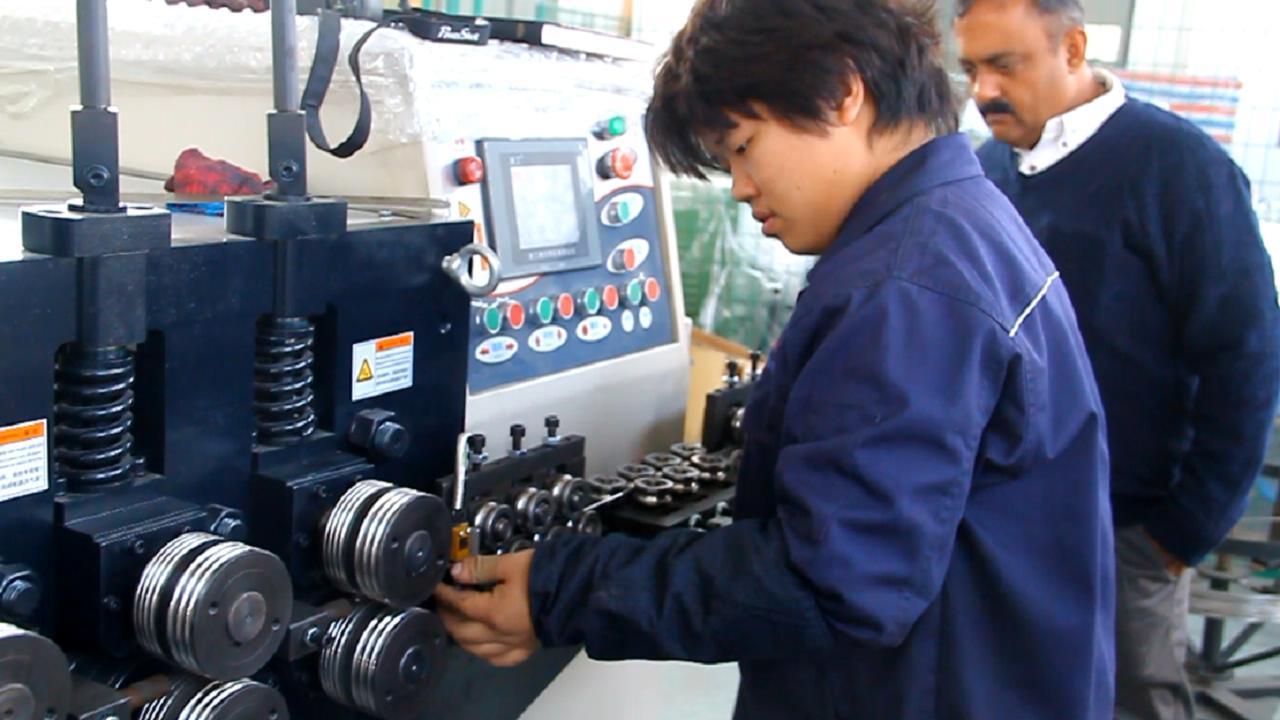

Automatic Ring Making Machine

Product Details:

Share Your Product:

20000.00 - 40000.00 USD ($)

Get a Price/Quote

Request To Call Back Send Inquiry

Automatic Ring Making Machine Price And Quantity

Price Range 20000.00 - 40000.00 USD ($)
Minimum Order Quantity 1 Piece

Automatic Ring Making Machine Trade Information

FOB Port CIF NHAVA SHEVA PORT
Payment Terms Telegraphic Transfer (T/T)
Supply Ability 20pcs Per Month
Delivery Time 30 Days
Packaging Details Customized
Main Export Market(s) Western Europe Australia Eastern Europe Middle East Central America Africa South America Asia North America
Main Domestic Market All India
Certifications CE

Product Description

Automatic Ring Making Machine

Specification

Model: R-6-300
Input voltage: 380V(3-phase) or customized
Power frequency: 50/60Hz
Designed max. capacity of transformer: 40KVA
Instant power during welding: 18KVA(for 4mm wire)
Instant power during forming: 3KVA
Wire thickness: 2.8-6mm
Max ring diameter: 300mm
Min ring diameter: 70mm
Ring perimeter tolerance: 0.5mm
Cooling: Natural cooling
Air flow required: 250L/min
Air pressure: 0.6-0.8MPa
Throughput: about 1560pcs/hr(for ring diameter 150mm)
Weight: 1300KGS

Features

High precision: intelligent "S" shape speed curve, the encoder and the servo motor form a closed-loop wire feeding control system, secure a diameter tolerance less than 0.13mm, eventually solve the ring precision issues inherent in the traditional mechanical or hydraulic ring making machines.
Advanced and reliable wire feeding: the feeding unit includes a high-end servo motor and a planetary reducer, works on the basis of "dual-drive".
Automatic ring making: sizes can be adjusted automatically, worker attendance is not required during machine running.
Compatible welding: capable of welding low, medium and high carbon steel, spring steel, galvanized steel; if equipped with a TIG unit, it can also weld stainless steel and titanium rings.
Easy operation and maintenance: user-friendly interface on touch screen, easy to adjust, operate and diagnose the machine.
