Integrated Welding Machine

Get a Price/Quote

MOQ : 1 , , Piece

Integrated Welding Machine Specification

Phase
Single Phase

Welding
ARC Welding

Power Consumption
Low

Output Voltage
65 V

Power Source
Electric

Equipment Type
Welding Machine

Frequency
50/60 Hz

Type
Integrated Welding Machine

Condition
New

Motor Type
AC Motor

Material
Mild Steel Body

Power
6 kVA

Voltage
220 V

Dimensions
780 x 380 x 610 mm

Input Voltage
220/380 V

Rated Current
250 A

Rated Capacity
6 kVA

About Integrated Welding Machine

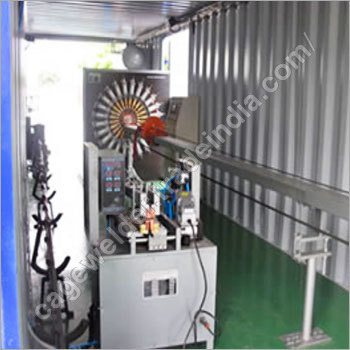

Welding Integrated Machine

Our team of skilled and trained professionals has enabled us to manufacture, supply and export Welding Integrated Machine. High quality raw materials and components are procured from the reputed sources of the market for the manufacturing of these products. These products find application in various welding and metal fabrication industries. High durability, low maintenance, high strength, sturdiness and resistance against corrosion are some of the main features of these products. Keeping in mind the variegated needs of the clients, we offer Welding Integrated Machine in different specifications.

Specifications:

Model: R-6-400

Input Voltage: 380V(3-phase) or specified by customer

Power Freq.: 50/60Hz

Rated Power: 18KVA

Cooling: Natural cooling

Air Flow: 250L/min

Air Pressure: 0.6-0.8MPa

Wire Thickness: 2.8mm-6mm

Max Ring Diameter: 400mm

Min Ring Diameter: a. 88mm (wire thickness less than 4mm) b. 90mm (wire thickness between 4 mm and 5mm) c. 105mm (wire thickness between 5mm and 6mm)

Throughput: about 1200pcs/hour(for ring diameter 150mm)

Ring diameter tolerance: less than 0.16mm

Weight: 600KG

Features

High precision: Provided with encoder, intelligent "S" shape speed curve, the servo motor make a closed-loop wire feeding control system.
These secure a diameter endurance less than 0.13mm.
Capable to eventually puzzle out the ring precision issues present in the time-honored hydraulic or mechanical ring making machines.

Filter Cages - round, star, oval, flat, peanut, spider and other odd shapes, with different connections, all can be customized.

Round cage size: OD100-200mm

Material: Mild steel wire, Stainless steel wire, Galvanized carbon steel wire, Titanium steel wire, etc.

Sizes of steel wire: 2.8-6mm

Efficient and Reliable ARC Welding

This welding machine delivers consistent ARC welding performance thanks to its AC motor and single-phase design. The 250 A rated current ensures robust welds, while the 6 kVA power output is suitable for most fabrication tasks. Its sturdy mild steel body enhances durability for prolonged industrial use.

Versatile Input Voltage Compatibility

The machine supports both 220 V and 380 V inputs, making it adaptable to different electrical standards worldwide. This flexibility allows for seamless integration in diverse operational settings without requiring constant voltage adjustments or special infrastructure.

Energy-Efficient Operation

Designed with low power consumption in mind, this integrated welding machine minimizes energy costs while maximizing output. Its efficient electric system delivers optimal performance without unnecessary energy waste, helping businesses maintain sustainable practices.

FAQs of Integrated Welding Machine:

Q: How does the integrated welding machine maintain low power consumption during operation?

A: The machine uses advanced circuitry and an efficient AC motor to optimize energy use. Its design ensures only the necessary power is used during ARC welding, reducing overall electricity costs while maintaining strong welding performance.

Q: What materials is this welding machine best suited for?

A: With its robust mild steel body and 250 A rated current, this machine is ideal for welding a variety of metals, including mild steel, making it suitable for general manufacturing, repair, and fabrication tasks.

Q: When should I use this integrated welding machine for industrial projects?

A: You should use this machine when you require consistent, high-quality ARC welds and have access to either 220 V or 380 V single-phase electric supply. Its durability and reliability make it appropriate for frequent, heavy-duty tasks.

Q: Where can this welding machine be installed for optimal performance?

A: The compact size and voltage flexibility allow installation in a variety of settings, including workshops, construction sites, and factory floors. Ensure adequate ventilation and safety measures are in place for the best results.

Q: What is the process for switching between 220 V and 380 V input voltage?

A: To switch between 220 V and 380 V, follow the manufacturers protocol usually indicated in the user manual. This often involves selecting the correct input setting and ensuring the connection matches the supply, keeping safety guidelines in mind.

Q: How does using this integrated welding machine benefit my business?

A: It offers energy savings, reliable welds, and easy adaptability to multiple power supplies, enhancing productivity while keeping operational costs low. Its durable build also reduces maintenance frequency, thus minimizing downtime.
