Automatic Ring Making & Welding Machine

Get a Price/Quote

MOQ : 1 , , Piece

Automatic Ring Making & Welding Machine Specification

Equipment Type
Ring Making & Welding Machine

Power Consumption
1.8 kW

Power Source
Electric

Frequency
50 Hz

Application
Making and Welding Rings

Welding
Spot Welding

Current Range
50 - 200 A

Output Voltage
3-12V (Adjustable)

Phase
Single Phase

Automation Grade
Automatic

Diameter
30 mm to 300 mm

Type
Automatic Ring Making & Welding Machine

Condition
New

Motor Type
AC Motor

Material
Mild Steel

Power
2 HP

Voltage
220V

Dimensions
1250 mm x 1100 mm x 1800 mm

Input Voltage
220V

Rated Current
10A

Rated Capacity
Up to 1000 rings/hour

Noise Level
65 dB

Die Type
Interchangeable

Transportability
Movable with Casters

Safety Features
Overload Protection, Emergency Stop

Cooling System
Air Cooled Transformer

Operating Temperature
5C to 45C

Weight
Approx. 600 kg

Welding Time
0.1 - 9.99 sec

Production Capacity
900-1000 Rings/Hour

Usage
Steel, Stainless Steel, Galvanized, Copper Wires

Wire Feed Speed
Adjustable

Max Wire Thickness
3.5 mm

Display
Digital Panel

Finish Type
Powder Coated Body

Control System
PLC Controlled

About Automatic Ring Making & Welding Machine

Automatic Ring Making & Welding Machine

Having a technically sound infrastructure and sound production unit, we are engaged in providing superior quality Automatic Ring Making & Welding Machine. This machine is manufactured by utilizing high grade components and contemporary technology under the stern supervision of our skilled professionals. Offered machine is used for making making wire and welding purposes. Further, this Automatic Ring Making & Welding Machine can be purchased form us at an economically fair price range.

Features:

Hassle-free operations
Fine finish
Longer service life
Minimum maintenance

Specifications:

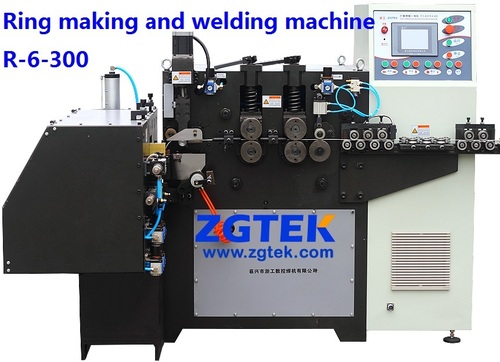

Model: R-6-300
Ring perimeter endurance: 0.5mm
Input voltage: 380V(3-phase) or custom-made
Power frequency: 50/60Hz
Wire thickness: 2.8-6mm
Instant power during forming: 3KVA
Designed max. capacity of transformer: 40KVA
Instant power during welding: 18KVA(for 4mm wire)
Maximum ring diameter: 300mm
Minimum ring diameter: 70mm

Filter Cages - round, star, oval, flat, peanut, spider and other odd shapes, with different connections, all can be customized.

Round cage size: OD100-200mm

Material: Mild steel wire, Stainless steel wire, Galvanized carbon steel wire, Titanium steel wire, etc.

Sizes of steel wire: 2.8-6mm

Efficient Production and Versatility

This machine streamlines ring making and welding processes, delivering up to 1,000 rings per hour with wire diameters ranging from 30 mm to 300 mm. Its interchangeable dies and adjustable wire speed accommodate diverse ring specifications, making it fit for multiple wire types, including steel, stainless steel, galvanized, and copper.

Advanced Control & Safety Systems

With a PLC-controlled digital display, users can easily monitor and adjust settings such as welding time and output voltage. Integrated safety measures like overload protection, emergency stop, and powder-coated body enhance operational reliability for continuous manufacturing in demanding environments.

Durable Design & Mobility

Built from mild steel, the machine is powder-coated for longevity and equipped with casters, allowing easy movement on the shop floor. Its air-cooled transformer supports operation within a temperature range of 5C to 45C, while maintaining low noise levels ( 65 dB) for a productive, comfortable workspace.

FAQs of Automatic Ring Making & Welding Machine:

Q: How does the automatic ring making and welding process work?

A: The machine automatically feeds wire, shapes it into rings of adjustable diameter, and performs spot welding at the set welding time. All operations are PLC-controlled through a digital panel, ensuring consistent quality and speed.

Q: What types of wire materials are compatible with this equipment?

A: This machine can process steel, stainless steel, galvanized, and copper wires, supporting a maximum wire thickness of 3.5 mm, making it versatile for various industrial applications.

Q: When should I adjust the wire feed speed or welding time?

A: Adjust the wire feed speed and welding time to match the specific wire type, diameter, and desired ring strength. These settings can be updated on the digital panel to optimize productivity and ring quality.

Q: Where can this machine be used within a manufacturing facility?

A: Thanks to its casters and compact dimensions, the machine can be positioned wherever needed in a manufacturing or fabrication area, providing flexibility for workflow arrangement.

Q: What are the key benefits of using an automatic ring making & welding machine?

A: Core benefits include high production speed, consistent quality, minimal operational noise, enhanced safety with overload and emergency stop, and adaptability to various ring sizes and wire types.

Q: How do safety features protect operators during the ring making process?

A: The machine includes overload protection and an emergency stop button to immediately halt operations if unsafe conditions are detected, safeguarding users throughout production.

Q: Is the machine suitable for export, supply, and trading purposes in the Indian market?

A: Yes, its robust build, automated operation, and adaptability make it ideal for distributors, exporters, suppliers, and traders in India, ensuring reliable ring manufacturing with minimal manual intervention.
