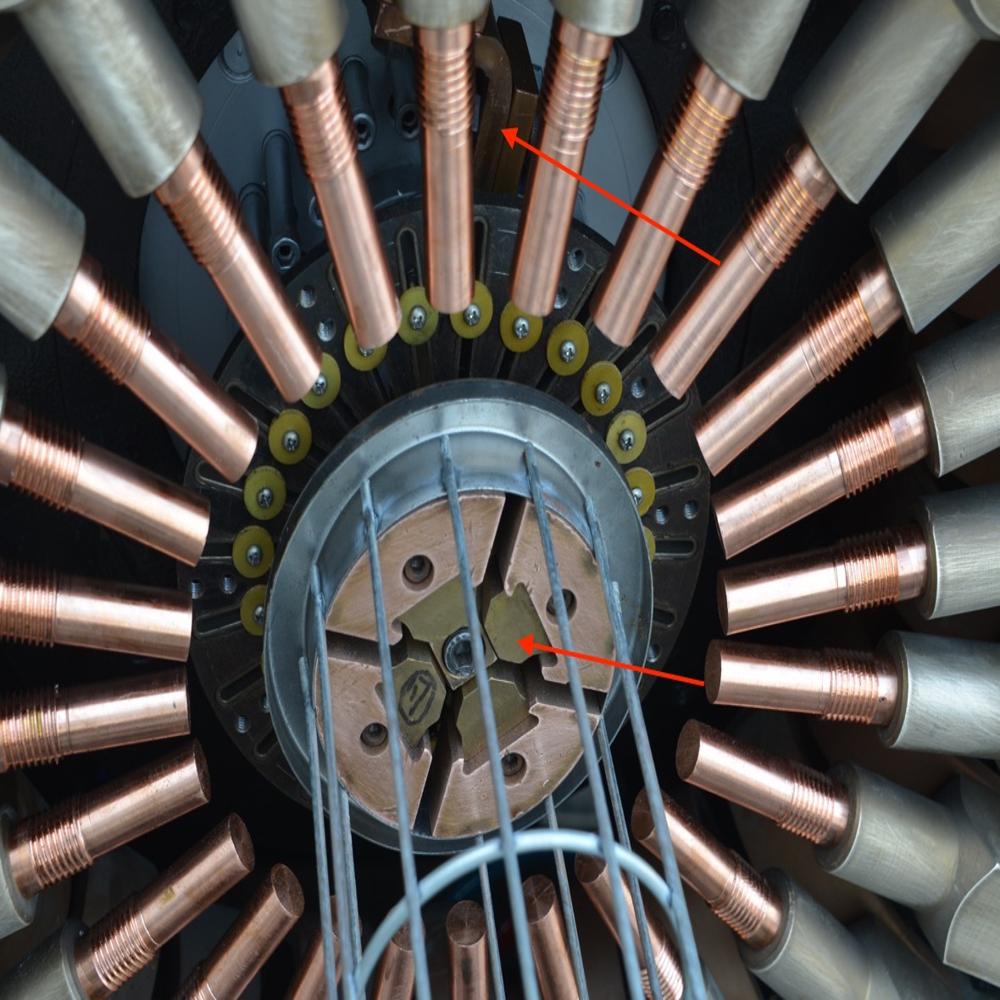

Filter skeleton welding machine

Name: Filter skeleton welding machine
Brand: ZHE GONG CNC WELDING MACHINE (ZGTEK) CO., LTD.
Price: 1000000.0 INR
Availability: InStock

Price 1000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Filter skeleton welding machine Specification

Product Type
Filter Skeleton Welding Machine

General Use
Manufacturing of Filter Bag Cages/Wire Filter Bag Frames

Material
Stainless Steel, Copper, Alloy Components

Type
Automatic Welding Machine

Capacity
Suitable for multi-size filter cage production

Weight (kg)
Approx. 1200 kg

Computerized
Yes

Automatic
Fully Automatic

Ozone Generator
No

UV Sterilizer
No

Control System
PLC Control System

Filter Bag No.
Adjustable (Typically 6-24 wires)

Filter Area
Customizable Per Client Requirement

Voltage
380V / 50Hz (customizable)

Motor
Servo Motor Driven

Dimension (L*W*H)
Approx. 2600mm x 1400mm x 2200mm

Feature
High Precision Welding, Consistent Quality, Low Energy Consumption

Color
Industrial Standard (typically grey, blue or customized)

Noise Level
70 dB

Operator Interface
Touch Screen HMI

Maintenance
Low, with self-lubricating bearings and components

Cooling System
Water Cooled Electrodes

Wire Diameter Range
3 - 6 mm

Welding Method
Resistance Spot Welding

Production Speed
20-25 cages per hour

Power Consumption
Approx. 15 kW

Welding Precision
0.2 mm

Safety Features
Emergency Stop, Overload Protection

Max. Cage Length
6000 mm

Air Requirement
0.6 MPa, dry compressed air

Application
Dust Collector Filter Cage Manufacturing, Industrial Filtration Systems

Filter skeleton welding machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Shanghai

Payment Terms
Telegraphic Transfer (T/T)

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Main Domestic Market
All India

Filter skeleton welding machine About

Filter Cage Welding Machine - 6th generation

Features

Very high welding speed, e.g. for a 12-wire cage, one ring takes only 0.18s
Automatic cage pulling, ring space can be set in the program through the user-friendly interface.
The cage pulling carriage is equipped with bearings, runs on the rail with linear guides, it's smooth and precise
Function of bad weld detection and auto re-welding
Material selection, different welding parameters for mild steel, galvanized steel and stainless steel
Auto compensation gives enough space to insert the ring when the ring distance is short
Ring space precision is 0.1mm; cage pulling speed is 0.4m/s
Rails and material shelf equipped and connected to the machine. The front end of the rail is adjustment-free. Good linearity can be achieved for wire cages
Four air tanks, short air route inside the machine ensures quick response of the cylinders
25mm thick front plate resulted from one-time machining, firmly secure that the welding cylinders are on the same plane and perpendicular to the axes, thus the linearity of the cage can be ensured
Stroke-adjustable cylinders increase welding speed, pre-pressing only takes 0.08s
Equipped with powerful micro-computing unit
Sync/Time-sharing mode can put two transformers work at the same time or one after another, secure good welding quality even when the power supply is not very sufficient
