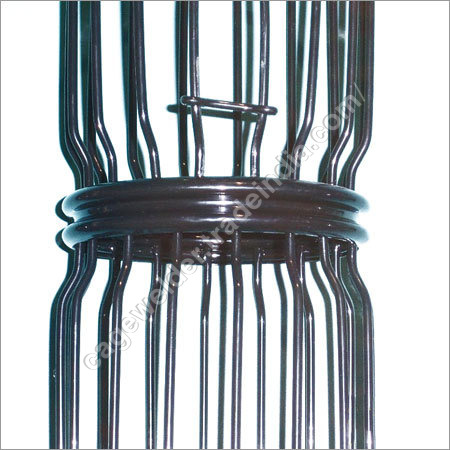

Linking Ring Locator for Split Filter Cages

Get a Price/Quote

MOQ : 1 , , Piece

Linking Ring Locator for Split Filter Cages Specification

Automation Grade
Manual

Diameter
Available in multiple diameters as per requirement

Power Source
Manual

Application
Positioning and aligning linking rings in split filter cages

Equipment Type
Filter Cage Assembly Tool

Type
Linking Ring Locator

Condition
New

Dimensions
Customized as per filter cage size

About Linking Ring Locator for Split Filter Cages

Linking Ring Locator for Split Filter Cages

Linking Ring Locator for Split Filter Cages

Model: D4I-80-1/D4I-80-2(top cap welder integrated)
Input voltage: 380V (2-phase)
Power freq.: 50Hz
Power capacity: 80KVA
Working load: 20KVA
Cooling: Natural cooling
Air flow: 100L/min
Air pressure: 0.6-0.8MPa
Insulation grade: F

Features

Ensuring linearity of multi-section cages
D4I-80-1: First use D4I-80-1 to weld the four locating joints(of which one is located at the gap of clamping ring), then use DS series top cap welder to weld the rest joints one by one
D4I-80-2: Top cap welder is integrated

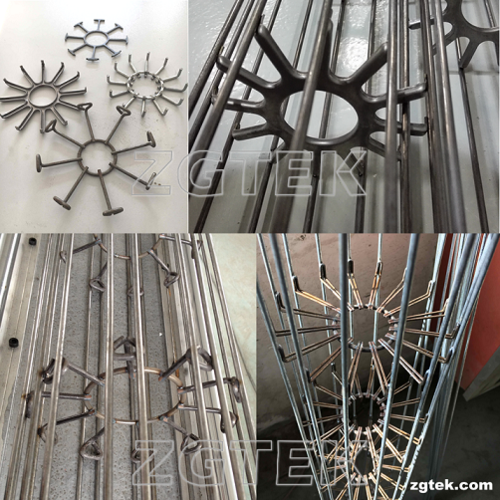

Filter Cages - round, star, oval, flat, peanut, spider and other odd shapes, with different connections, all can be customized.

Round cage size: OD100-200mm

Material: Mild steel wire, Stainless steel wire, Galvanized carbon steel wire, Titanium steel wire, etc.

Sizes of steel wire: 2.8-6mm

Reliable Solution for Filter Cage Assembly

The Linking Ring Locator for Split Filter Cages guarantees accurate positioning and alignment of linking rings, streamlining the assembly process. Its customizable dimensions cater to a wide range of filter cage sizes, making it a versatile addition to both manufacturing and maintenance workflows. This tool is distributed, exported, and supplied by leading industry experts in India, assuring quality and technical support.

Adaptable Design for Multiple Applications

Engineered to accommodate diverse filter cage configurations, this locator is available in numerous diameters according to your specifications. Its user-friendly, manual operation makes it suitable for varying production environments, ensuring that filter cage assembly remains efficient and error-freeregardless of cage size or complexity.

FAQs of Linking Ring Locator for Split Filter Cages:

Q: How is the Linking Ring Locator used in split filter cage assembly?

A: The Linking Ring Locator is manually positioned to align and hold linking rings in place during the assembly of split filter cages, ensuring accurate placement and minimizing assembly errors.

Q: What are the available diameters and customization options?

A: The locator can be customized to any filter cage size, with multiple diameters available based on client requirements, allowing for a precise fit across varied applications.

Q: When should I use this tool during the assembly process?

A: Use the Linking Ring Locator during the positioning and alignment phase of split filter cage assembly to ensure the linking rings are properly situated before final fastening.

Q: Where is this product manufactured and distributed from?

A: The Linking Ring Locator for Split Filter Cages is manufactured, exported, imported, distributed, and supplied by established companies in India.

Q: What is the process for ordering a customized dimension locator?

A: Customers can specify their required filter cage size and diameter when placing an order. The tool is then manufactured to those precise dimensions for optimal compatibility.

Q: What are the main benefits of using this manual locator tool?

A: It increases assembly efficiency, decreases human error, and delivers consistent and accurate alignment of linking rings, resulting in higher product quality and reduced downtime.

Q: Is any special training required for manual operation?

A: No special training is necessary; the tool is designed for intuitive, manual use, making it accessible and easy to integrate into existing assembly workflows.
